FEA Training Course

Introduction to finite element analysis taken through DeepSoftInc

Material covered was intentionally generic to be applicable to any FEA software

All course problems were evaluated using Autodesk Simulation Mechanical


    Excerpt concepts covered

  • Case Studies
  • Design Scenarios
  • Advantages and usages of plates or beam elements
  • 3-2-1 method to fix an object.
  • 2D planar and axisymmetric cases
  • Meshing convergence
  • Concentrated mass and remote loads

Pressure Loads for UAV

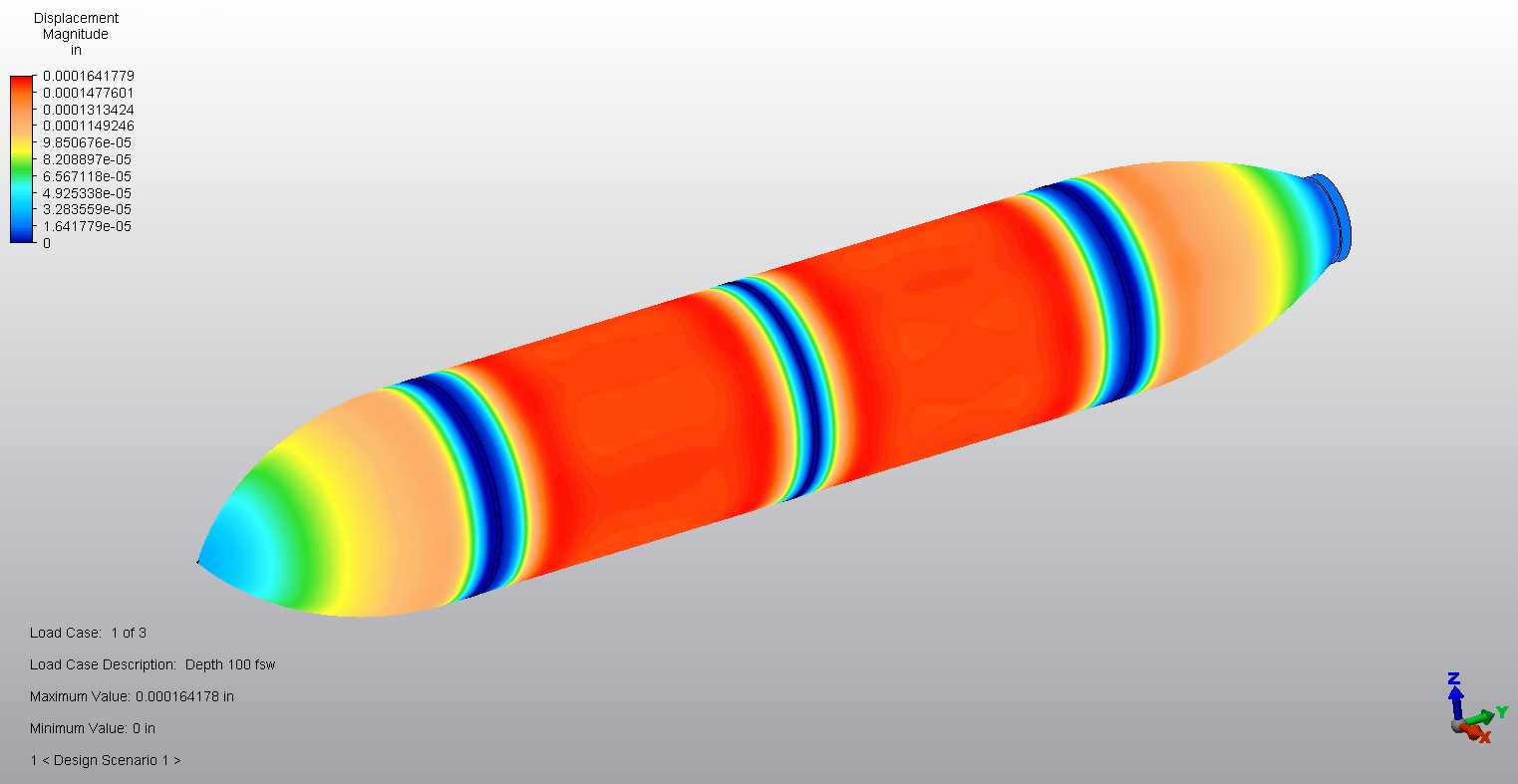

Image Displacement plot

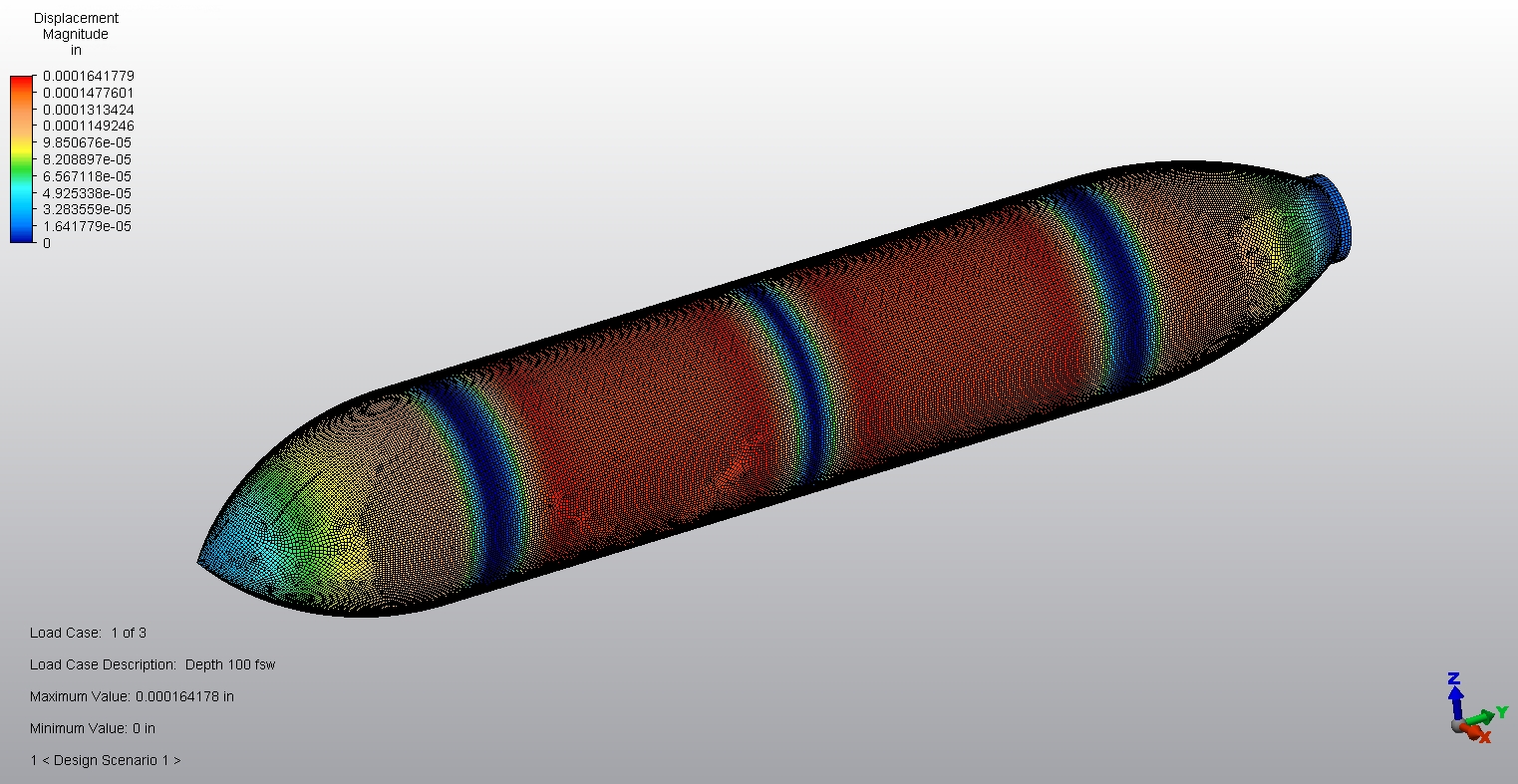

Image Displacement plot with a visible fine mesh.

  • Model is a simplified Underwater Autonomous Vehicle.
  • Pressure loads uniform over all external surfaces to simulate different depths under water.
  • Used brick elements for solid geometry.
  • Design scenarios were used for different depths.

Rigid Boundary Elements

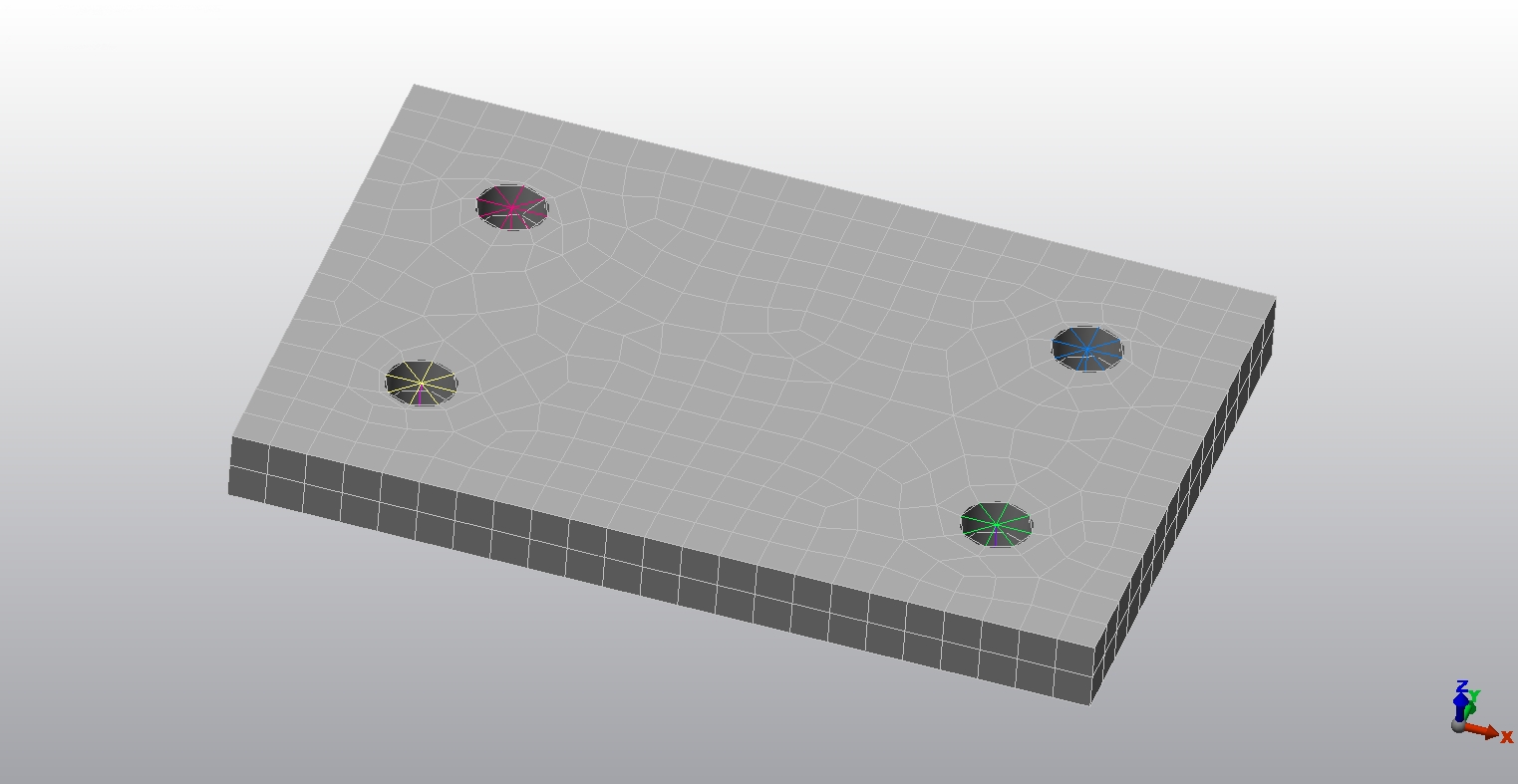

Image RBE spiders to simulate bolts. Top and bottom spiders are rigid elements with "no" mass. Interconnnecting element between the spiders is a beam element to collect reaction forces in 6 DOF

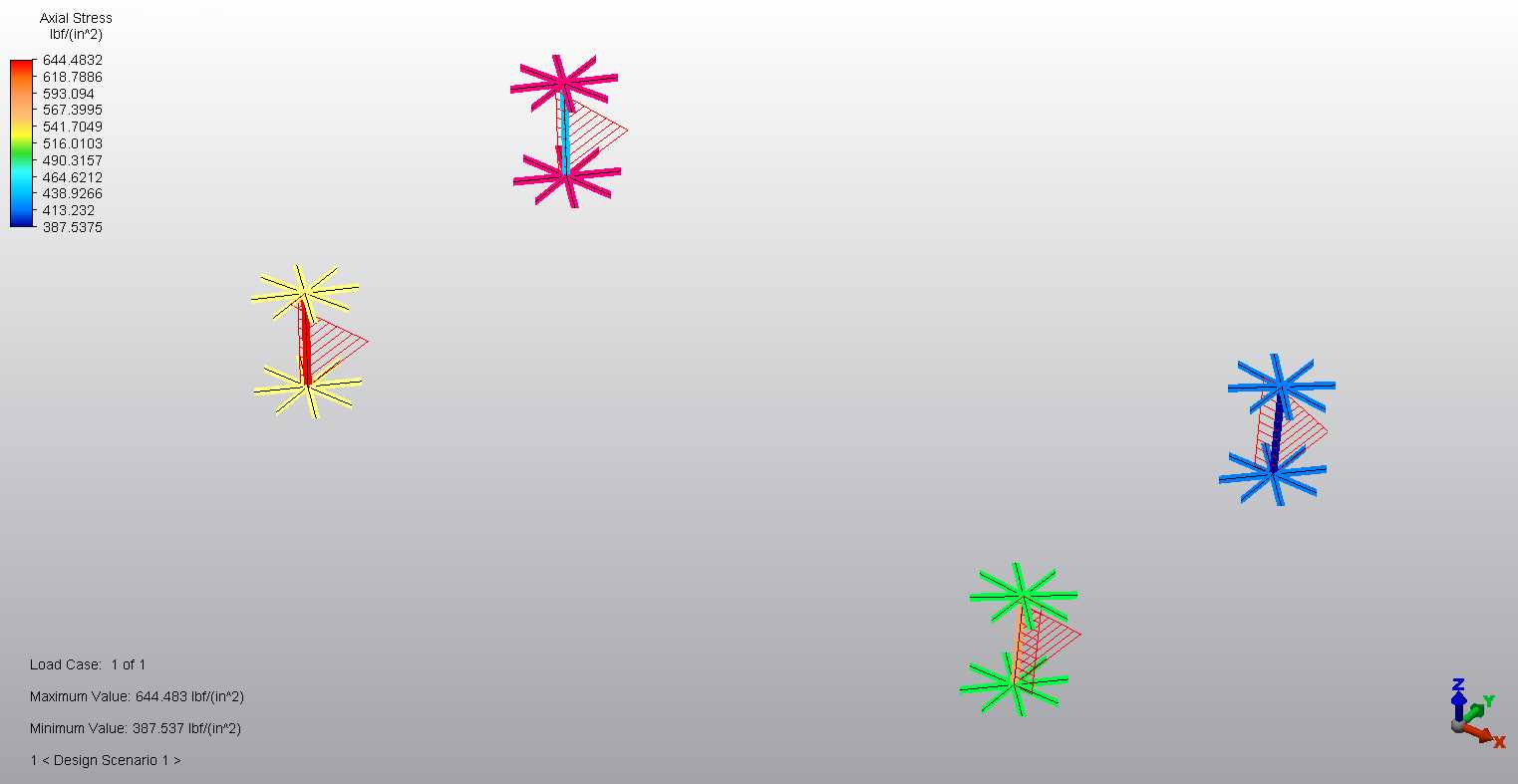

Image Axial stress results

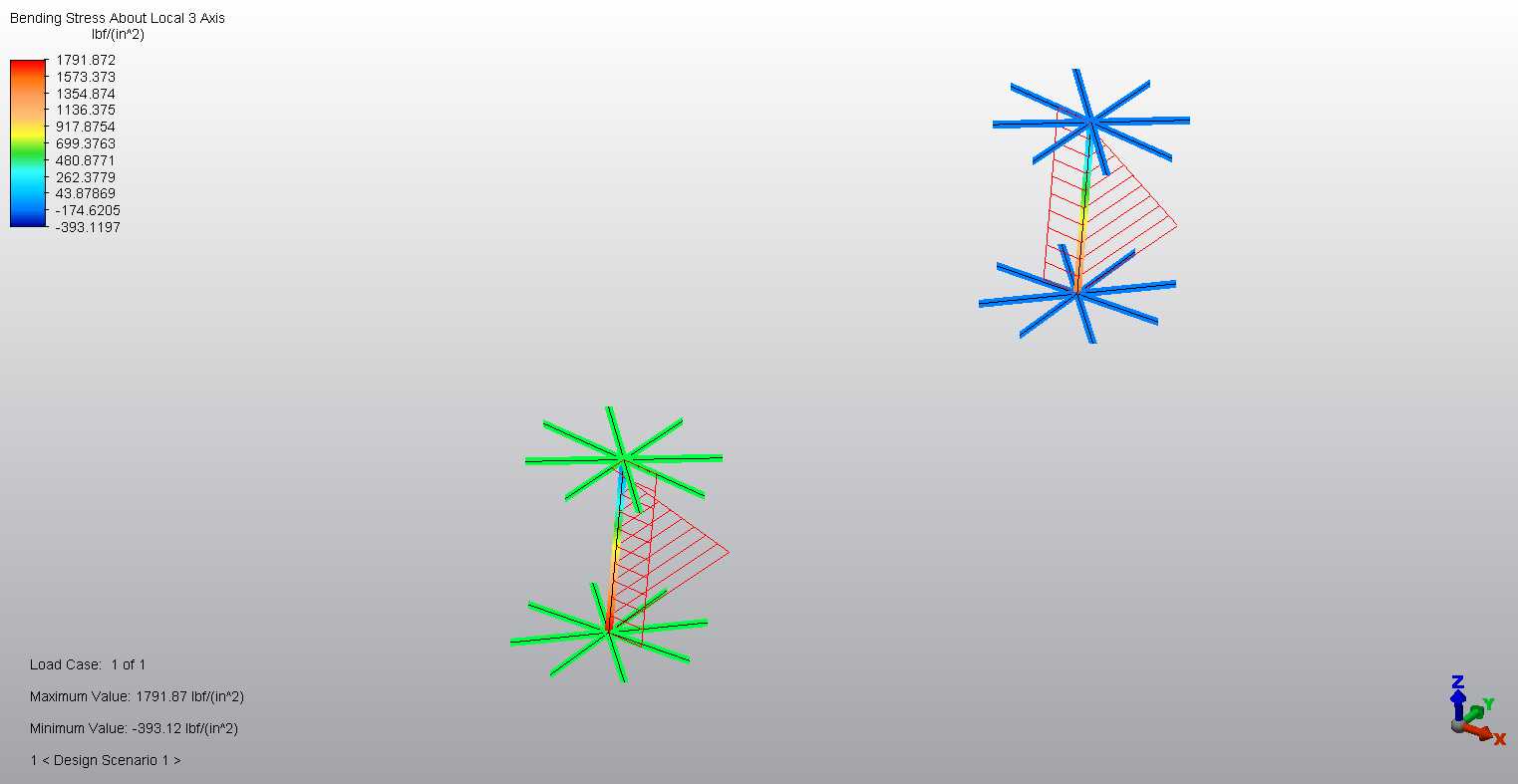

Image Bending stress results in 3rd axis. Also showing superimposed bending moment diagram.

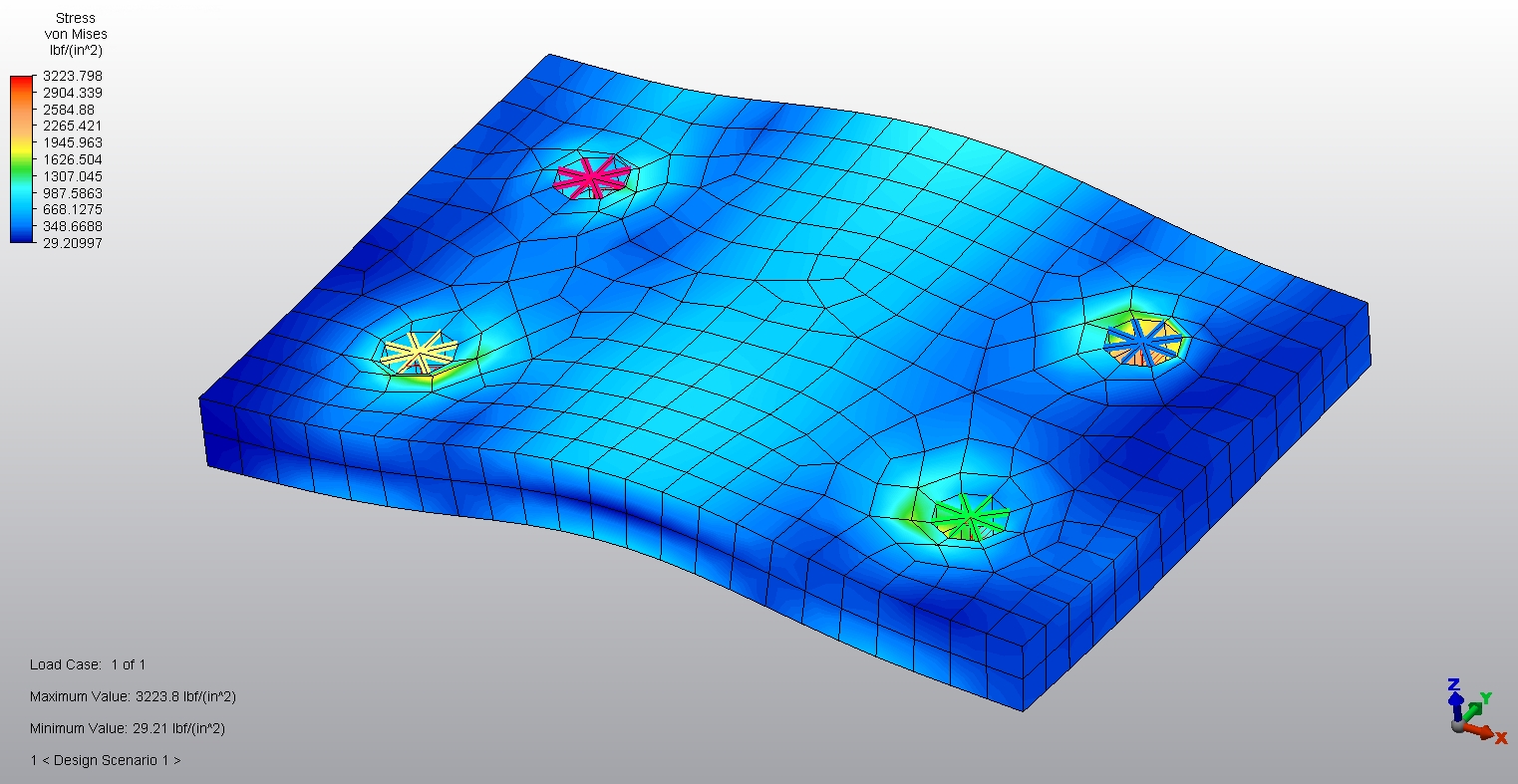

Image Von Mises results and displacement shown.

  • For beam elements there is an associated geometry to select. In this example a round profile was chosen with a .125 in diameter.
  • Shown below are the resultant forces on the beam elements representing the bolts. The x, y, z reaction forces sum to applied loads.

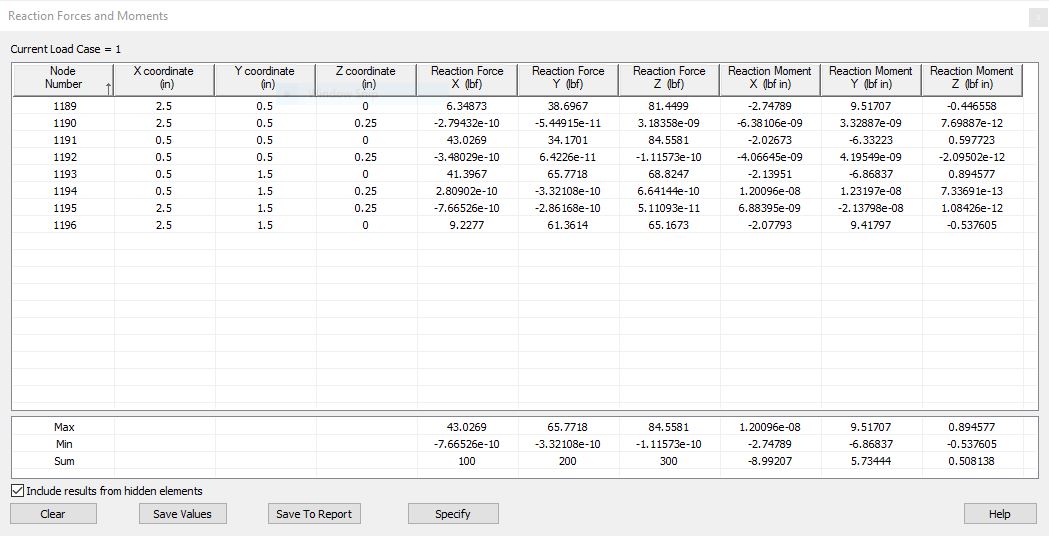

Image Bolt reaction forces



Remote Loading and Concentrated Mass

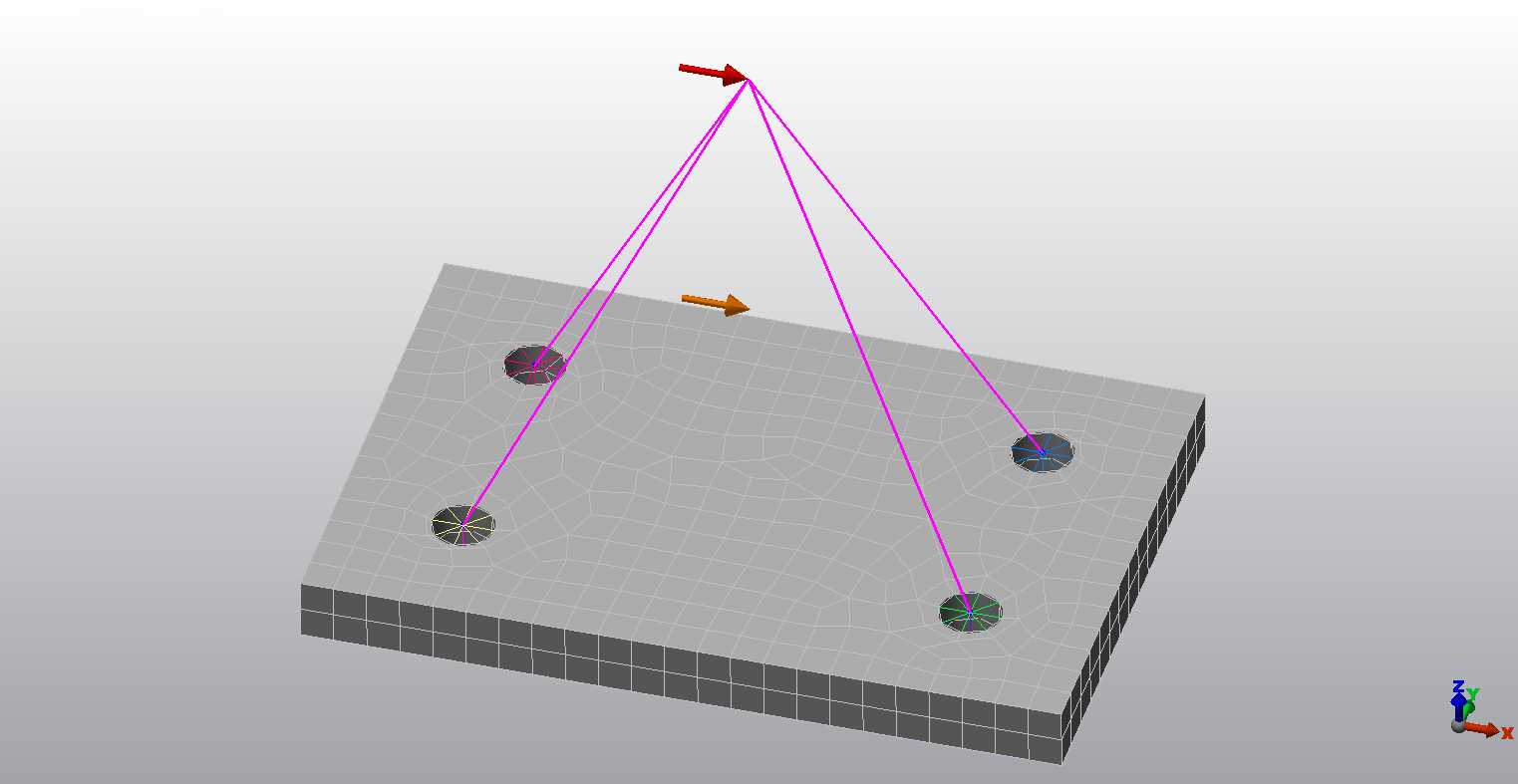

Remote loads with a concetrated mass attached by truss RBEs.

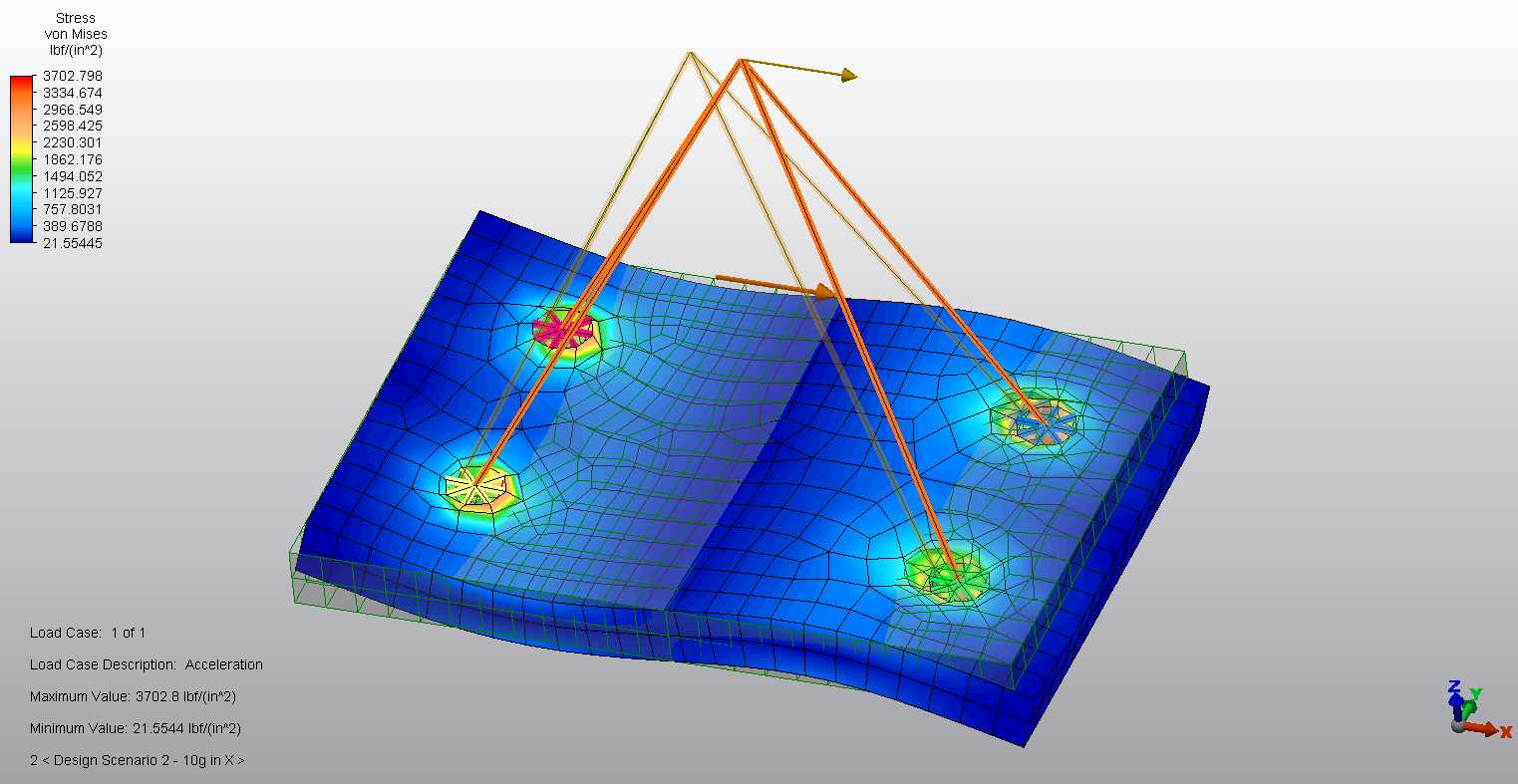

Results of remote loads with a concetrated mass load. Deformation is exaggerated for effect and overlayed with transparent image of original part.

Image Another loading condition.

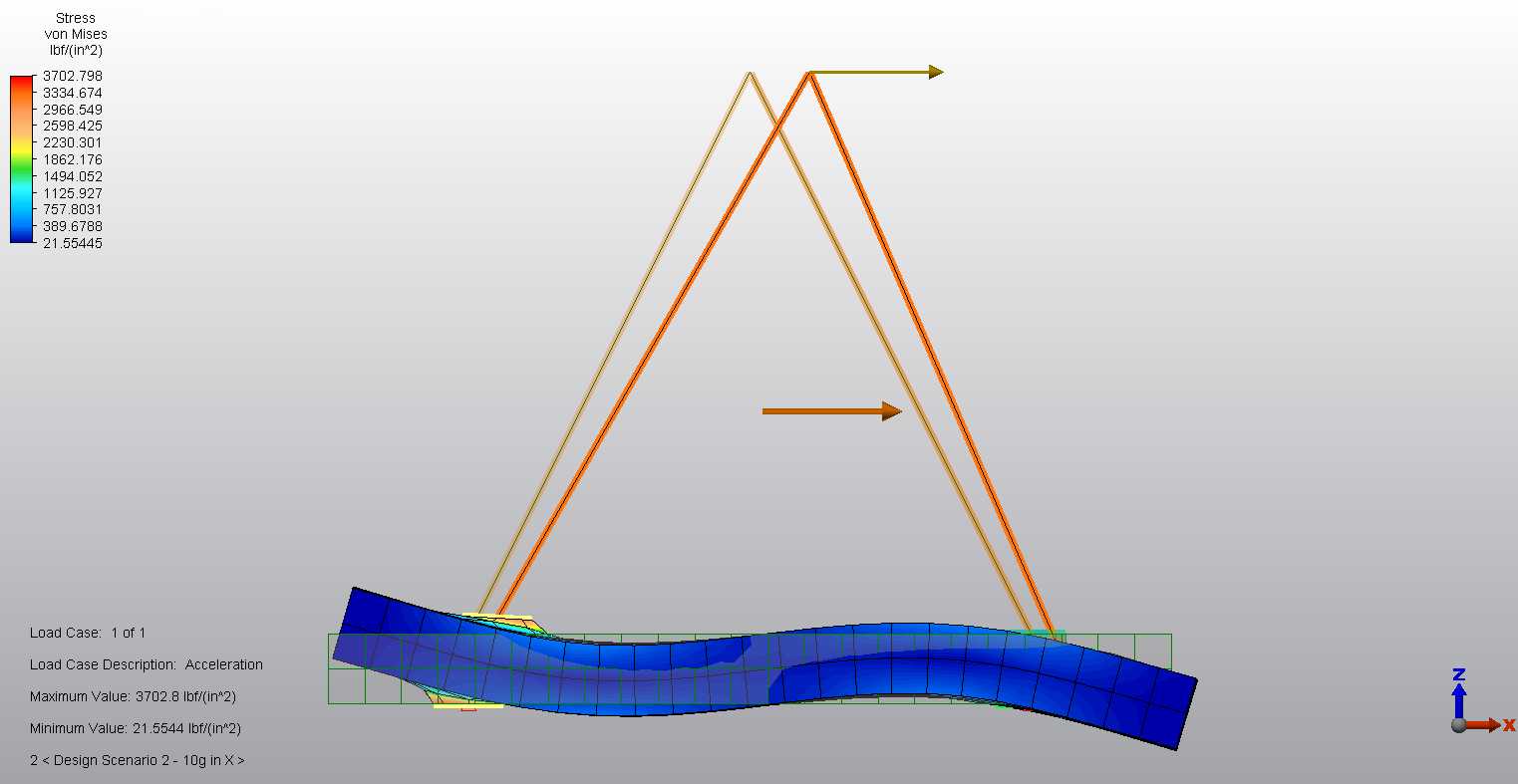

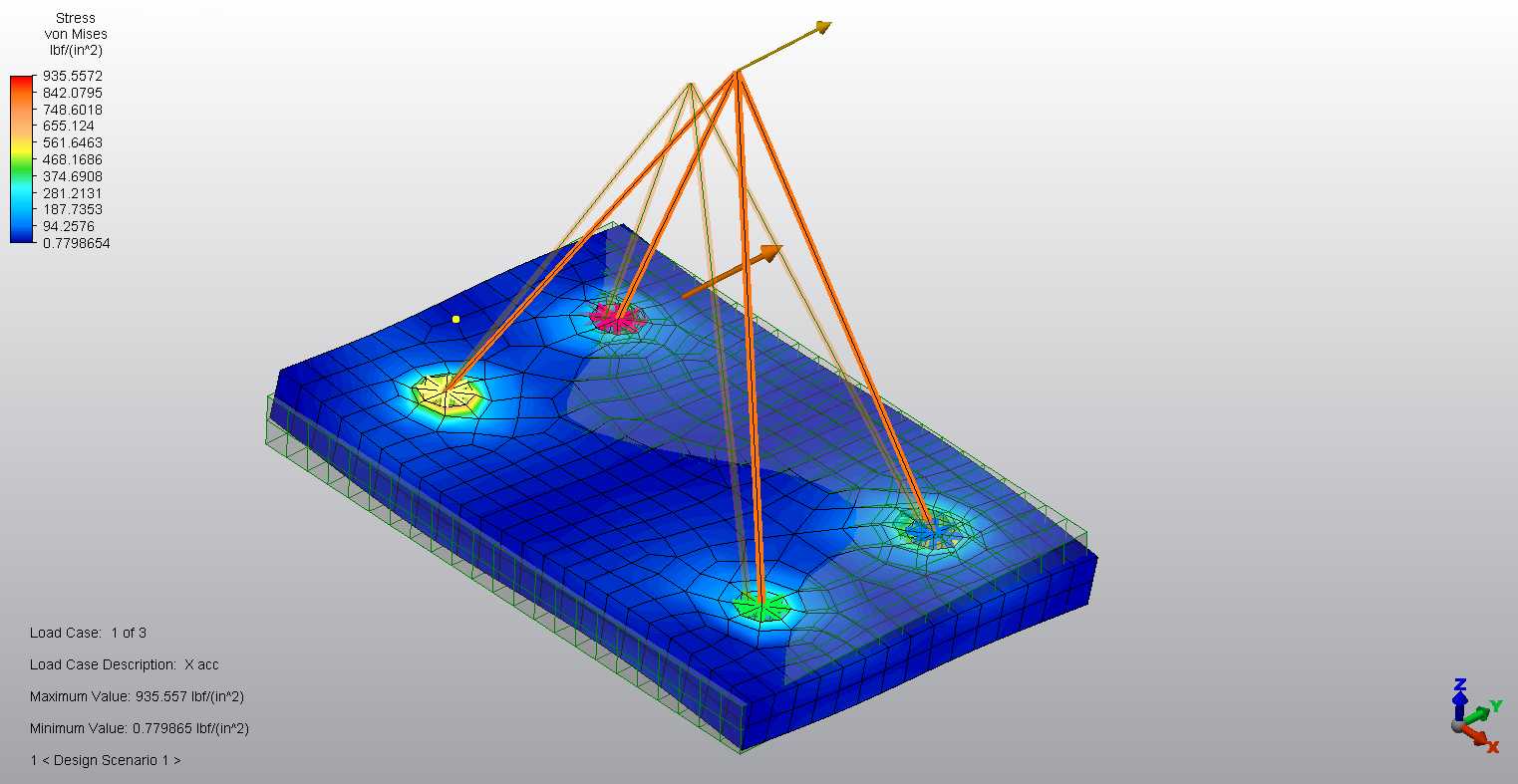

Remote loads with a concetrated load. Load is acting in the x-direction. Loading was differentiated with design scenarios.

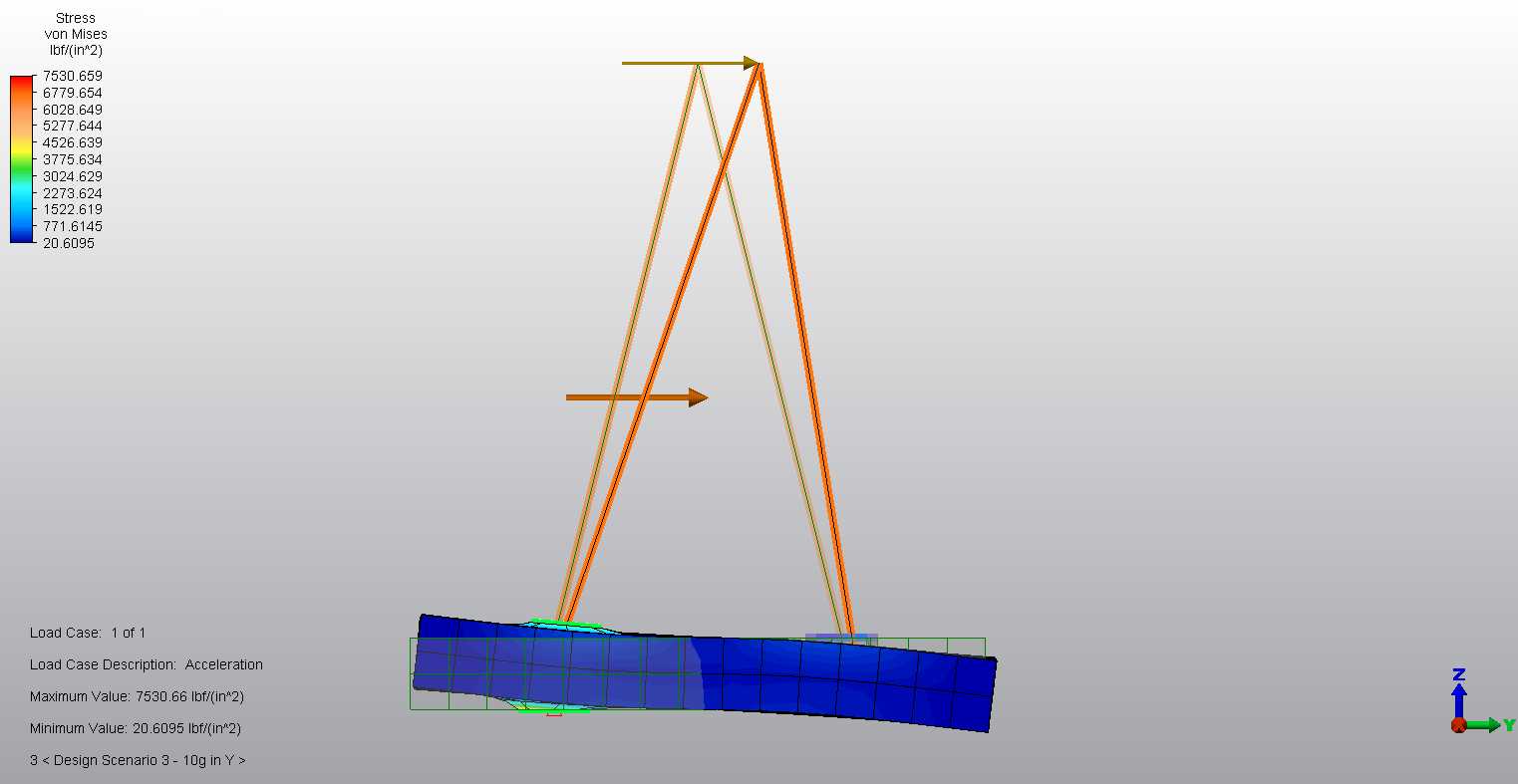

Image Remote loads with a concetrated load. Load is acting in the y-direction. Loading was differentiated with design scenarios.

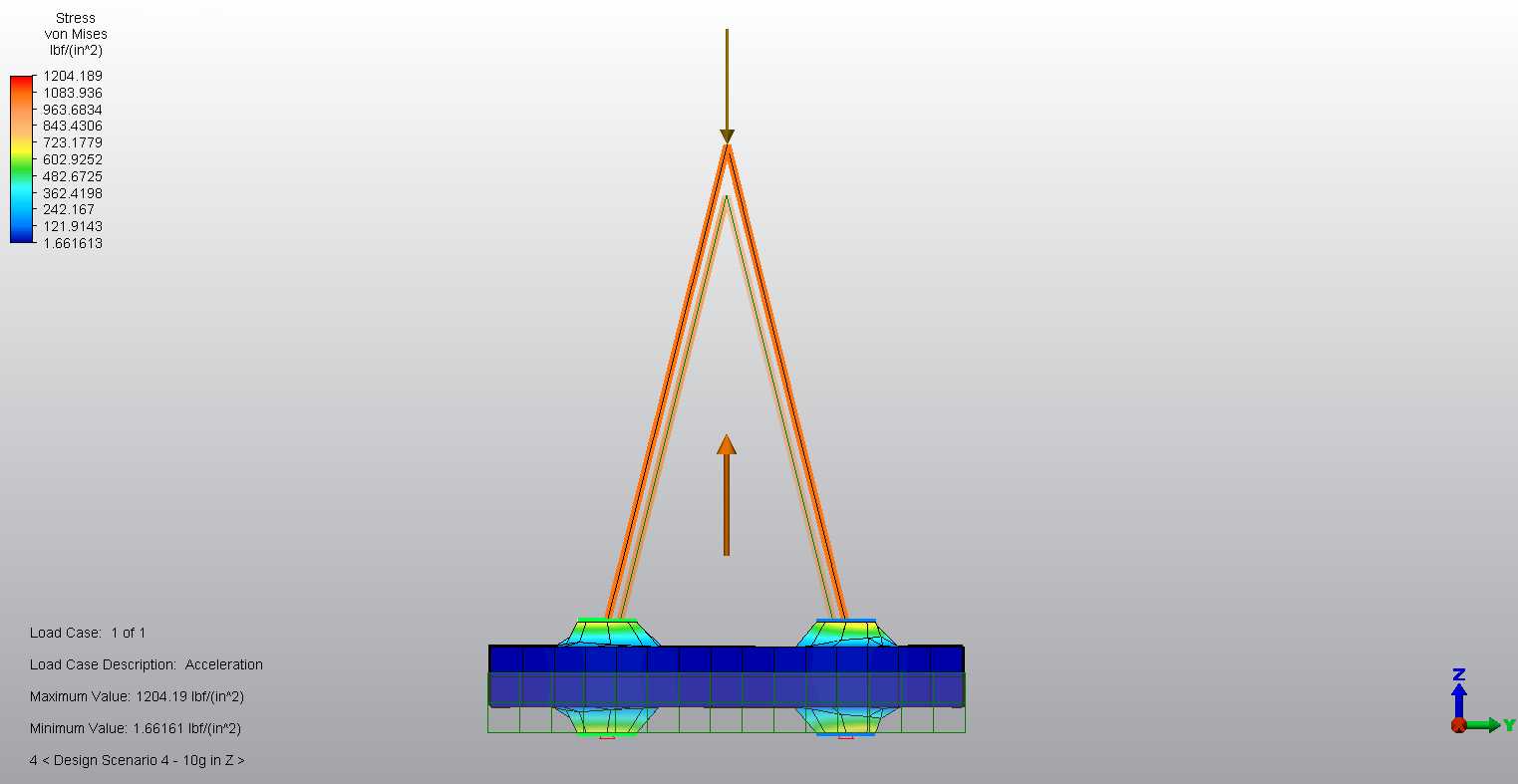

Image Remote loads with a concetrated load. Load is acting in the z-direction. Loading was differentiated with design scenarios.
